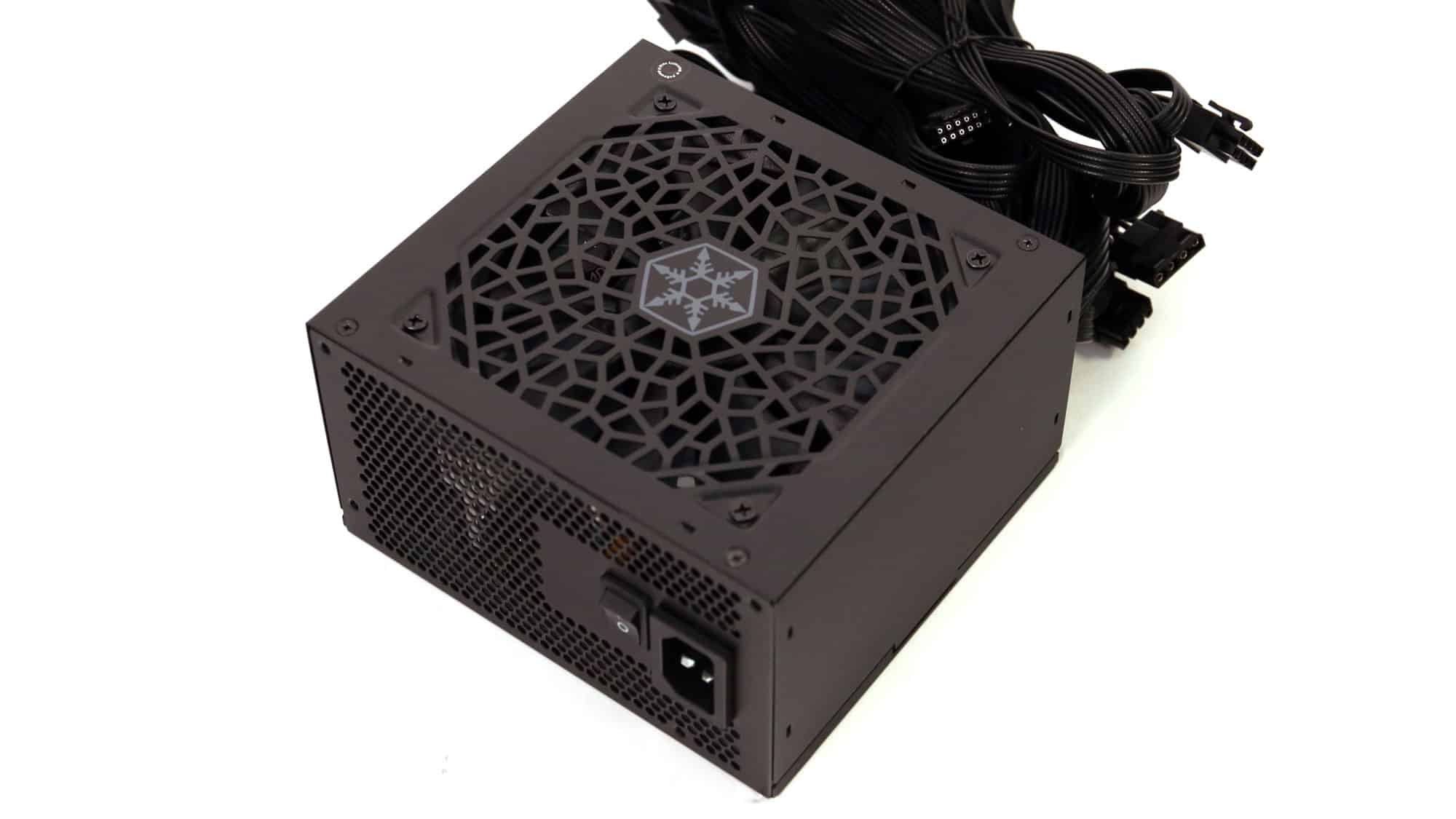

A non-modular PSU that meets the strict ATX v3.1 specification? SilverStone thought that this would be a good idea and released the Triton RX line. In today’s review I will evaluate the strongest member, with 850W max power to see if this is indeed a good idea, or better go fully-modular even at an increased cost!
The Silverstone Triton line is available in three models, with capacities ranging from 650W to 850W. To keep the cost down, all feature a non-modular cable design, which looks weird nowadays, with flat embossed cables. The OEM behind these products is Andyson, a reputable company that faced significant challenges following EVGA’s collapse. The Triton RX units feature fans with ICB bearings, which are a less common type. Therefore, I will devote some lines to explaining what an ICB bearing is. This is a specific bearing technology known as Integrated Circuit Ball (ICB) bearings, or sometimes referred to as Intelligent Control Bearing, depending on the manufacturer. These bearings are designed to:
- Increase the fan’s lifespan
- Reduce noise
- Enhance thermal performance
- Often include intelligent control features
ICB fans utilize ball bearings, which are tolerant of high temperatures but also prone to bearing noise at low speeds. This is why they use ICs to control the fan speed more effectively. Everything is good so far with the fan’s bearing, except for one thing: the fan I found in this SilverStone unit is a plain rifle bearing fan, not an ICB one.
Look at our best ATX v3.1 PSU guide before buying your next PSU.
ATX v3.1 850W PSU Reviews:
- 1st Player NGDP 850W PSU Review
- be quiet! Dark Power 13 850W PSU Review
- be quiet! Pure Power 12 M 850W PSU Review
- Cooler Master GX III 850W ATX v3.0 PSU Review
- Cougar GEX X2 850W PSU Review
- Enermax Revolution D.F.12 850W PSU Review
- MSI MPG A850GS PCIE5 ATX v3.1 PSU Review
- MSI MAG A850GLS PCIE5 ATX v3.1 PSU Review
- MSI MAG A850GL PCIE5 850W PSU Review
- Montech Titan Gold 850W PSU Review
- Montech Titan PLA 850W ATX v3.1 PSU Review
- Sharkoon Rebel P20 850W ATX v3.1 PSU Review
- Thermaltake Toughpower PF3 850W PSU Review
- Thermaltake Toughpower GF A3 850W PSU Review
- Thermaltake Toughpower GF3 ARGB 850W PSU Review
- Thermaltake ToughPower GF3 850W ATX v3.0 PSU Review
- XPG Core Reactor II VE 850W PSU Review
- XPG KYBER 850W ATX v3.1 PSU Review
- XPG Core Reactor II 850W PSU Review
- Manufacturer (OEM): Andyson International Co., Ltd.
- Max Power: 850W
- Cybenetics Efficiency: [115V] Cybenetics Gold (88.4%), [230V] Cybenetics Gold (90.781%)
- Noise: [115V] Cybenetics Standard+ (39.58 dB[A]), [230V] Cybenetics Standard (40.36 dB[A])
- Compliance: ATX v3.1, EPS 2.92
- Operating Temperature (Continuous Full Load): 0 – 40 °C
- Alternative Low Power Mode support: Yes
- Power 12V combined:849.6W
- Number of 12V rails: 1
- Power 5V + 3.3v: 100W
- Power 5VSB: 15W
- Cooling: 120mm ICB (in reality Rifle) Bearing Fan (S1202512M)
- Semi-Passive Operation: ✗
- Modular Design: Yes (Fully)
- High Power Connectors: 2x EPS (1x cable), 5x PCIe 6+2 pin (3x cables), 1x PCIe 12+4 pin (600W)
- Peripheral Connectors: 6x SATA (2x cables), 2x 4-pin Molex (2x cables)
- ATX Cable Length: 565mm
- EPS Cable Length: 655mm
- 12+4 pin PCIe Cable Length: 595mm
- 6+2 pin PCIe Cable Length: 525mm
- Distance between SATA/4-pin Molex: 150mm
- In-cable capacitors: No
- Dimensions (W x H x D): 150 mm x 85 mm x 140mm
- Weight: 1.91 kg (4.21 lb)
- Warranty: 3 years
- MSRP (excluding VAT): no info
Power Specifications
Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
Max. Power | Amps | 18 | 18 | 70.8 | 3 | 0.3 |
Watts | 100 | 849.6 | 15 | 3.6 | ||
Total Max. Power (W) | 850 |
