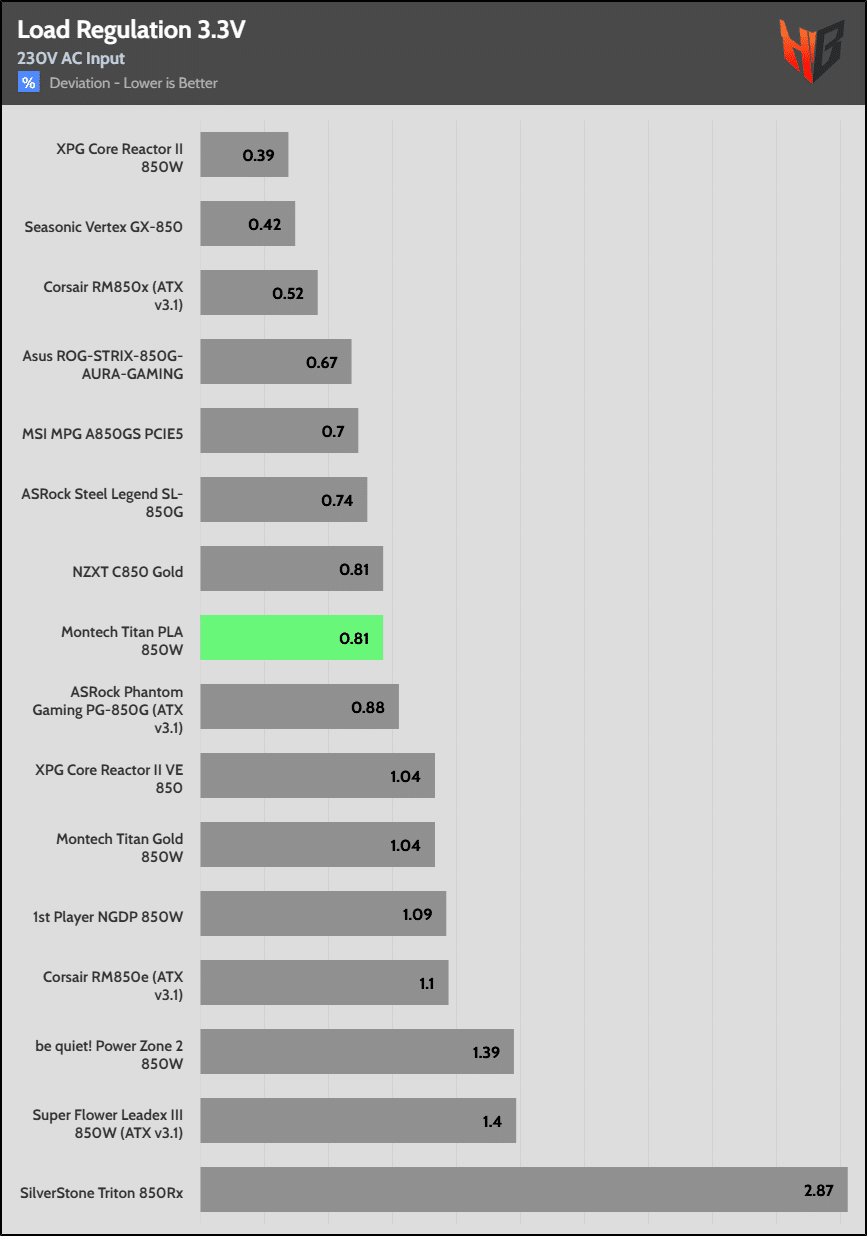

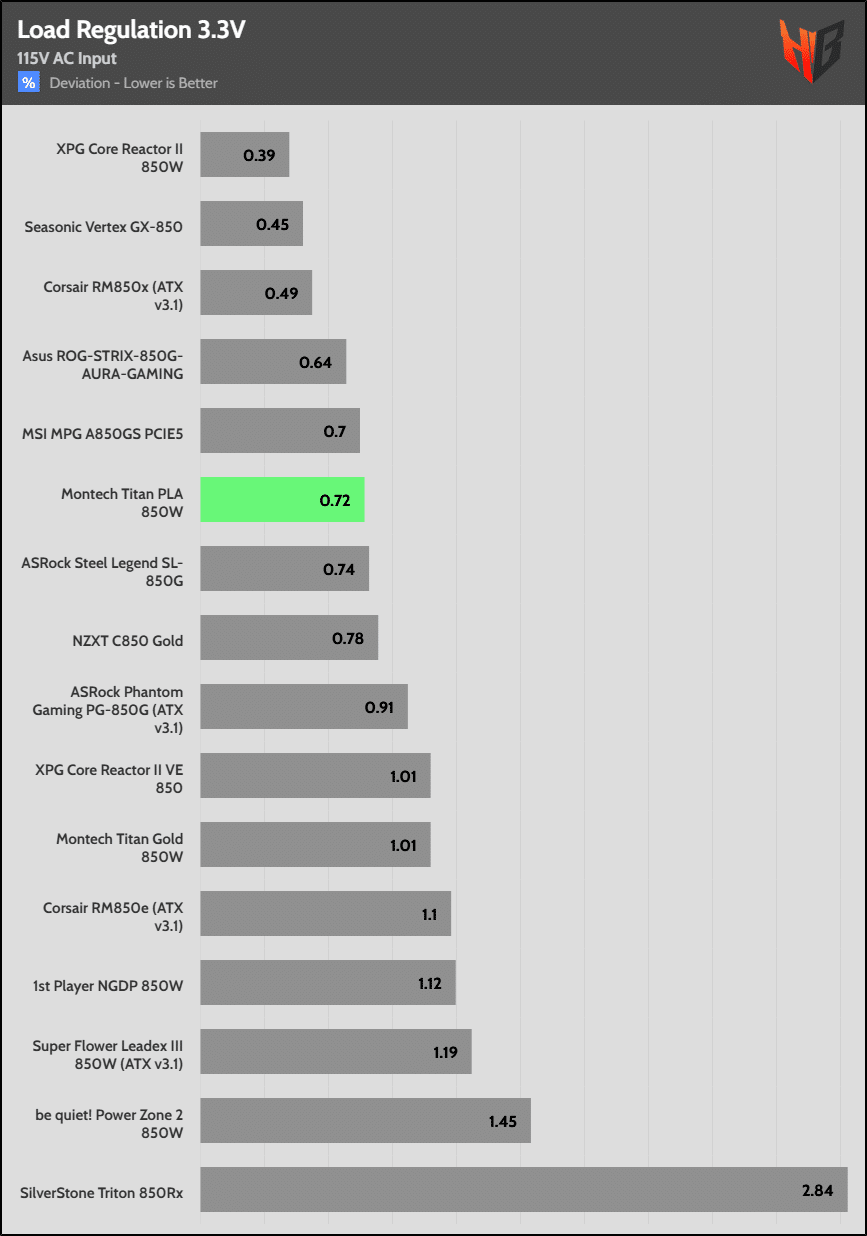

Load Regulation
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 10% | 5.194A | 1.982A | 1.971A | 0.98A | 84.994 | 86.63% | 0 | <6.0 | 44.25°C | 0.933 |
| 12.208V | 5.044V | 3.349V | 5.104V | 98.112 | 40°C | 114.84V | ||||
| 20% | 11.384A | 2.975A | 2.958A | 1.177A | 169.915 | 90.085% | 0 | <6.0 | 45.1°C | 0.958 |
| 12.211V | 5.042V | 3.347V | 5.096V | 188.618 | 40.53°C | 114.82V | ||||
| 30% | 17.946A | 3.472A | 3.453A | 1.376A | 254.916 | 91.498% | 0 | <6.0 | 46.12°C | 0.97 |
| 12.195V | 5.04V | 3.345V | 5.087V | 278.598 | 41.02°C | 114.79V | ||||
| 40% | 24.503A | 3.97A | 3.95A | 1.575A | 339.995 | 91.709% | 707 | 15.7 | 41.62°C | 0.976 |
| 12.194V | 5.038V | 3.342V | 5.079V | 370.735 | 47.27°C | 114.76V | ||||
| 50% | 30.701A | 4.965A | 4.941A | 1.775A | 424.755 | 91.599% | 704 | 15.6 | 42.13°C | 0.979 |
| 12.190V | 5.036V | 3.339V | 5.07V | 463.711 | 48.13°C | 114.73V | ||||
| 60% | 36.869A | 5.96A | 5.934A | 1.976A | 509.307 | 91.274% | 699 | 15.4 | 42.61°C | 0.982 |
| 12.192V | 5.034V | 3.337V | 5.061V | 557.995 | 49.24°C | 114.7V | ||||
| 70% | 43.093A | 6.957A | 6.929A | 2.177A | 594.629 | 90.773% | 745 | 17.7 | 43.12°C | 0.984 |
| 12.195V | 5.032V | 3.334V | 5.052V | 655.07 | 50.14°C | 114.67V | ||||
| 80% | 49.314A | 7.954A | 7.923A | 2.279A | 679.47 | 90.203% | 805 | 20.0 | 43.51°C | 0.986 |
| 12.199V | 5.03V | 3.332V | 5.045V | 753.268 | 51.55°C | 114.64V | ||||
| 90% | 55.924A | 8.452A | 8.408A | 2.382A | 764.884 | 89.613% | 1003 | 27.2 | 44.02°C | 0.988 |
| 12.202V | 5.028V | 3.33V | 5.038V | 853.537 | 53.12°C | 114.61V | ||||
| 100% | 62.274A | 8.953A | 8.926A | 2.988A | 849.719 | 88.927% | 1180 | 32.1 | 44.99°C | 0.989 |
| 12.204V | 5.026V | 3.327V | 5.021V | 955.522 | 55.09°C | 114.57V | ||||
| 110% | 68.496A | 9.953A | 10.016A | 2.991A | 934.278 | 88.204% | 1345 | 36.1 | 46.75°C | 0.99 |
| 12.205V | 5.023V | 3.324V | 5.016V | 1059.229 | 57.69°C | 114.53V | ||||
| CL1 | 0.113A | 11.962A | 11.871A | 0.001A | 101.282 | 84.726% | 0 | <6.0 | 45.48°C | 0.948 |
| 12.248V | 5.032V | 3.344V | 5.119V | 119.538 | 40.03°C | 114.83V | ||||
| CL2 | 0.113A | 19.889A | 0A | 0.001A | 101.365 | 82.911% | 820 | 20.7 | 40.35°C | 0.946 |
| 12.250V | 5.027V | 3.352V | 5.122V | 122.259 | 47.46°C | 114.84V | ||||
| CL3 | 0.113A | 0A | 19.757A | 0.001A | 67.381 | 77.539% | 818 | 20.6 | 37.75°C | 0.933 |
| 12.231V | 5.046V | 3.34V | 5.119V | 86.898 | 47.01°C | 114.85V | ||||
| CL4 | 69.644A | 0A | 0A | 0A | 849.555 | 89.452% | 1155 | 31.4 | 45.15°C | 0.989 |
| 12.199V | 5.039V | 3.336V | 5.09V | 949.749 | 56.09°C | 114.57V |
Load regulation is within 1% on all major rails.
| Test | 12V | 5V | 3.3V | 5VSB | DC/AC (Watts) | Efficiency | Fan Speed (RPM) | PSU Noise (dB[A]) | Temps (In/Out) | PF/AC Volts |
| 20W | 1.226A | 0.495A | 0.492A | 0.195A | 19.989 | 77.517% | 0 | <6.0 | 39.75°C | 0.822 |
| 12.100V | 5.048V | 3.351V | 5.123V | 25.786 | 36.7°C | 114.87V | ||||
| 40W | 2.700A | 0.693A | 0.689A | 0.293A | 39.99 | 83.851% | 0 | <6.0 | 40.28°C | 0.893 |
| 12.108V | 5.047V | 3.35V | 5.12V | 47.693 | 37.03°C | 114.87V | ||||
| 60W | 4.140A | 0.892A | 0.886A | 0.391A | 59.99 | 83.951% | 0 | <6.0 | 42.01°C | 0.918 |
| 12.202V | 5.046V | 3.35V | 5.117V | 71.456 | 38.17°C | 114.86V | ||||
| 80W | 5.596A | 1.09A | 1.083A | 0.489A | 79.924 | 86.509% | 0 | <6.0 | 42.98°C | 0.931 |
| 12.204V | 5.046V | 3.35V | 5.115V | 92.387 | 39°C | 114.85V |
The 12V rail starts at a low level and increases from 60W onwards. If I took the 60W load as a starting point, load regulation at 12V would be tighter.

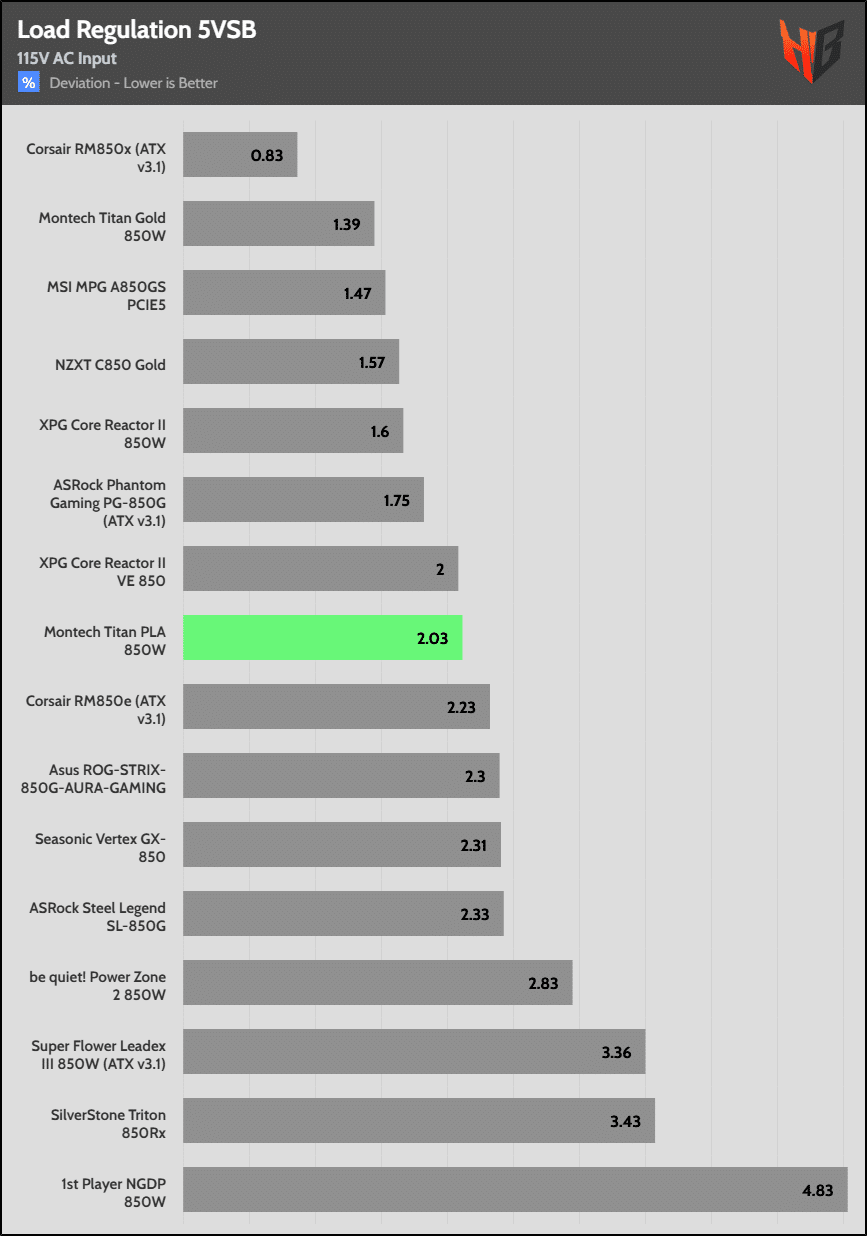

Ripple Suppression
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
| 10% Load | 11.7 mV | 14.7 mV | 13.7 mV | 18.9 mV | Pass |
| 20% Load | 11.8 mV | 13.9 mV | 14.0 mV | 16.0 mV | Pass |
| 30% Load | 31.1 mV | 12.8 mV | 14.1 mV | 13.1 mV | Pass |
| 40% Load | 21.3 mV | 15.3 mV | 14.0 mV | 26.8 mV | Pass |
| 50% Load | 19.8 mV | 15.4 mV | 14.9 mV | 27.6 mV | Pass |
| 60% Load | 19.4 mV | 15.9 mV | 15.4 mV | 26.8 mV | Pass |
| 70% Load | 20.0 mV | 15.8 mV | 16.2 mV | 26.2 mV | Pass |
| 80% Load | 20.0 mV | 16.6 mV | 16.2 mV | 26.9 mV | Pass |
| 90% Load | 19.8 mV | 17.5 mV | 16.1 mV | 27.7 mV | Pass |
| 100% Load | 29.4 mV | 19.6 mV | 19.4 mV | 29.5 mV | Pass |
| 110% Load | 29.4 mV | 19.9 mV | 22.2 mV | 30.8 mV | Pass |
| Crossload 1 | 12.0 mV | 16.2 mV | 16.6 mV | 21.1 mV | Pass |
| Crossload 2 | 12.4 mV | 18.8 mV | 14.7 mV | 33.3 mV | Pass |
| Crossload 3 | 11.8 mV | 16.9 mV | 16.4 mV | 32.6 mV | Pass |
| Crossload 4 | 28.8 mV | 18.7 mV | 17.9 mV | 29.8 mV | Pass |
Ripple suppression is good enough.
