Deepcool PX1200G PSU Review

Transient Response

20% Load – 20ms

Voltage Before After Change Pass/Fail
12V 12.112V 11.917V 1.61% Pass
5V 5.037V 4.961V 1.52% Pass
3.3V 3.293V 3.192V 3.07% Pass
5VSB 5.021V 4.953V 1.36% Pass

50% Load -20ms

Voltage Before After Change Pass/Fail
12V 12.043V 11.960V 0.68% Pass
5V 5.027V 4.961V 1.32% Pass
3.3V 3.289V 3.186V 3.13% Pass
5VSB 5.005V 4.939V 1.32% Pass

The transient response deviations are low on all rails but 12V, which I would like to see below the 1% average.

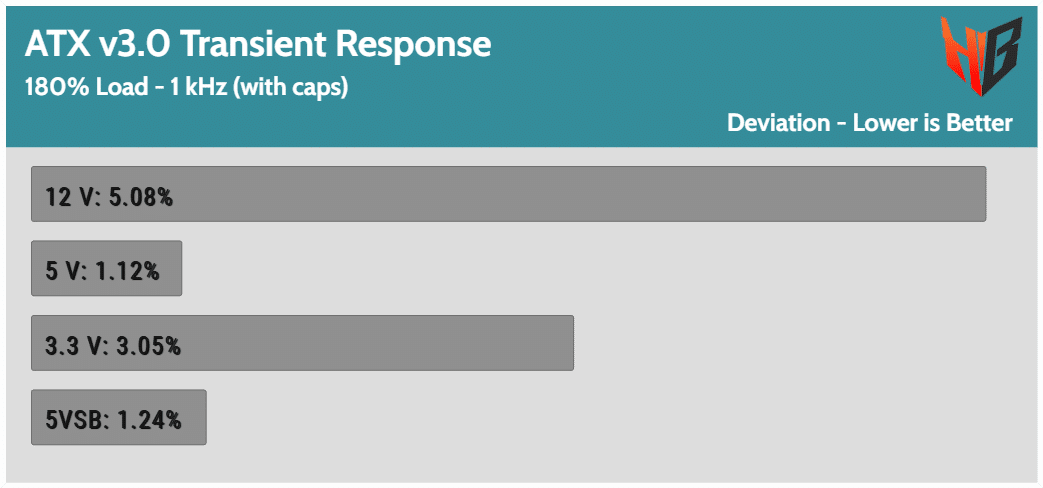

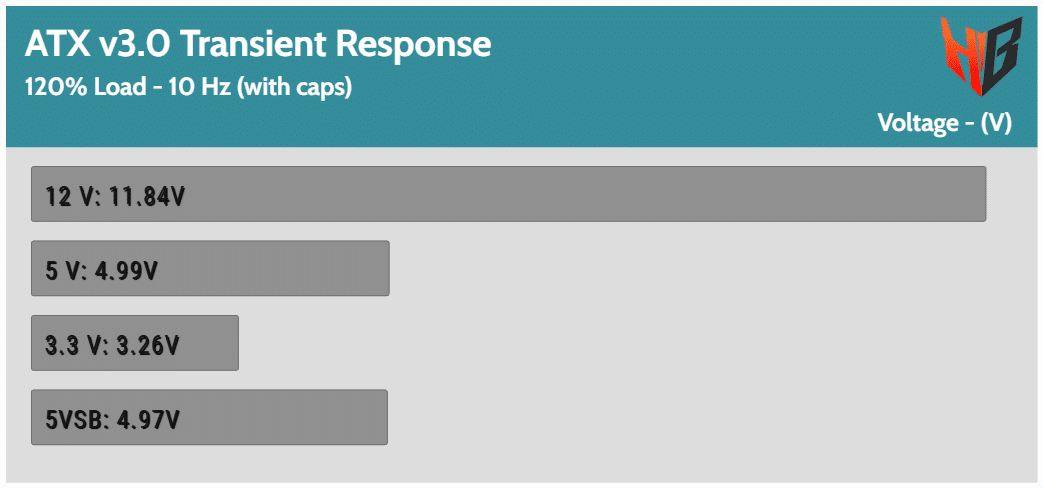

Transient Response ATX v3.0 Tests

The PSU successfully passed all ATX v3.0 transient response tests.

The 12V rail drops low during the 200% load test.
